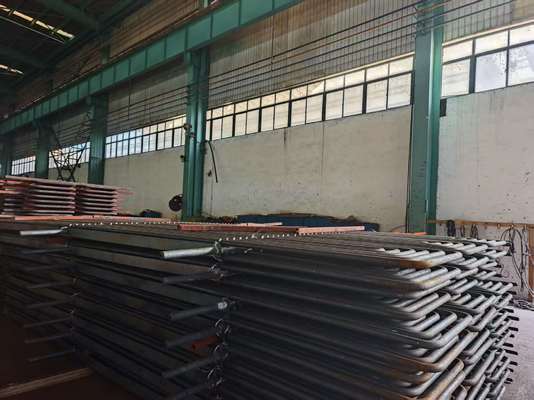

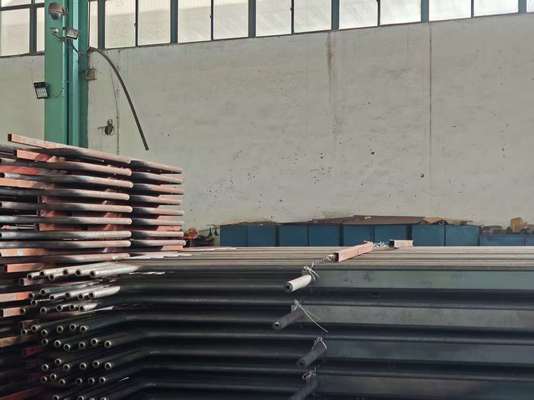

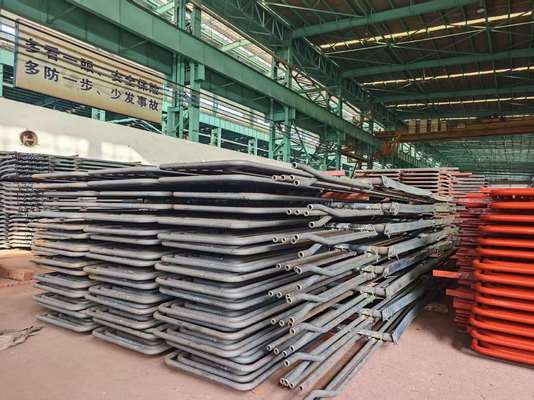

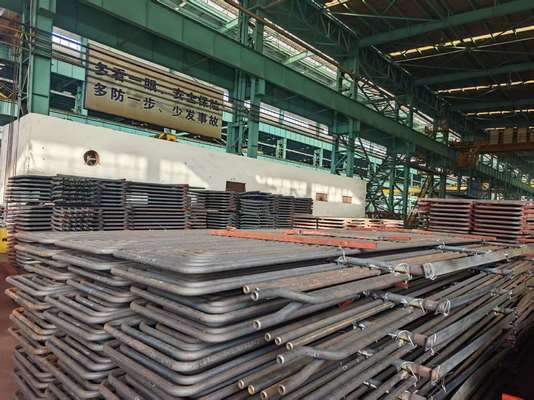

Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Saneco |
| 인증 | ASME, EN, GB, ISO |
| 모델 번호 | 보일러 슈퍼 히터 코일 |
| 최소 주문 수량 | 20 톤 |
| 포장 세부 사항 | 스틸 프레임 |
| 배달 시간 | 80~120일 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 특징 | 고온 저항, 내식성, 내구성, 맞춤형 | 재료 | 탄소강, 합금강, 스테인레스강, 니켈 합금, 하스텔로이, 인코넬, 인콜로이, 듀플렉스 스틸, 슈퍼 듀플렉스 스틸 |
|---|---|---|---|
| 코일 길이 | 맞춤형 | 코일 재료 | 탄소강, 합금강, 스테인레스강, 니켈 합금, 하스텔로이, 인코넬, 인콜로이, 듀플렉스 스틸, 슈퍼 듀플렉스 스틸 |
| 표면 처리 | 페인팅, 젤바니징, 파우더 코팅, 폴리싱 | 모양 | 직선, U 모양, 뱀장어 |
| 어플리케이션 | 보일러, 발전소, 석유화학, 정제, 화학, 종이나 직물, 설탕, 의약품, 식품 가공 | 크기 | 맞춤형 |
| 코일 표면 처리 | 페인팅, 젤바니징, 파우더 코팅, 폴리싱 | 코일 유형 | 베어, 핀드 |
제품 설명
Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts
How to enhance heat transfer efficiency in superheater coil design?
Use spiral winding structures to enhance turbulence and incorporate nano-surface treatments to reduce condensation thermal resistance, significantly improving heat exchange performance.
Description
For power plant boiler, it is a crutial way to increase thermal economy of thermal power station by improving parameter of superheated steam. The increase of superheated steam parameters are limited by metal materials. The design of superheaters must make sure that the temperature of outer wall of heating surface pipes is lower than allowable temperature of oxidation resistance of steel, and meanwhile make sure its mechanical strength. with the development of metal material used in boilers, power station boilers in our country already generally apply high pressure, high temperature(9.8MPa, 540 degrees) and superhigh pressure parameters(13.7 MPa, 540 and 555 degrees), and have developed subcritical pressure parameters(16.7MPa, 540 and 555 degrees). Now lots of boilers apply supercritical pressure parameters(24.5MPa, 540-570 degrees), and even very few units apply higher pressure and temperture parameters.
Application
use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
